Dragline Walking Frame

Name: Dragline Walking Frame
Brand: WALKSON

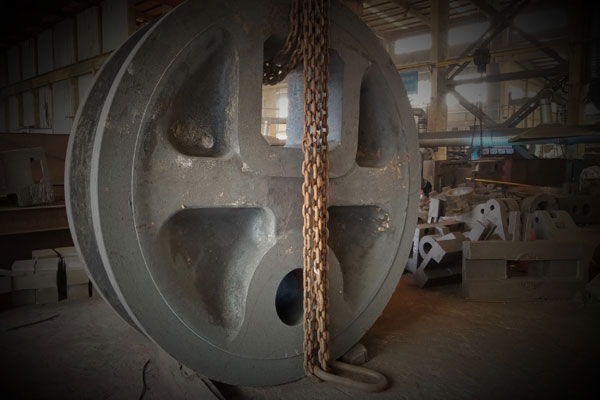

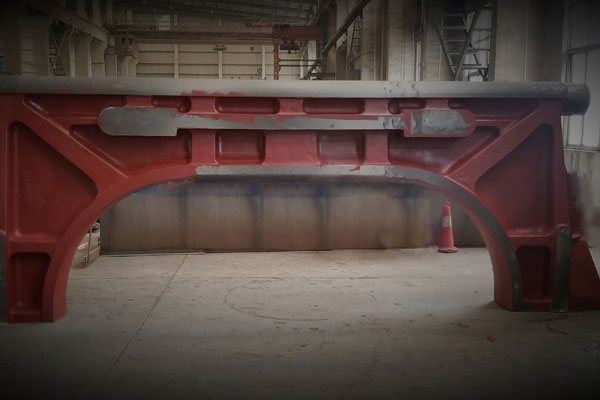

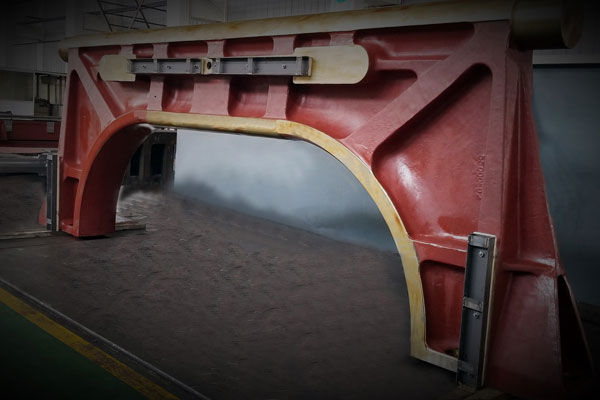

Dragline walking frame or walking arm, together with walking cam and cam shaft / propel shaft are the most important parts for dragline walking mechanism.

Why Choose WALKSON Dragline Walking Frame

This heavy equipment replacement part is made by low alloy high strength steel casting. The product weight is around 15T, the pouring weight of which is around 25T. We can deliver the final product with normalized & tempered or quenched tempered, fully machined to drawing dimensions.

During the manufacturing process of dragline spare parts, MT, UT and 3d laser scanning are used to make sure the walking frame 100% comply with the engineering drawing. As the frame casting has been fully machined to the drawing dimension, before international shipment, we design specifical protection shield for the frame to make sure the product is delivered to customer in good condition.
