Dragline Stablizer Link

Name: Dragline Stablizer Link
Brand: WALKSON

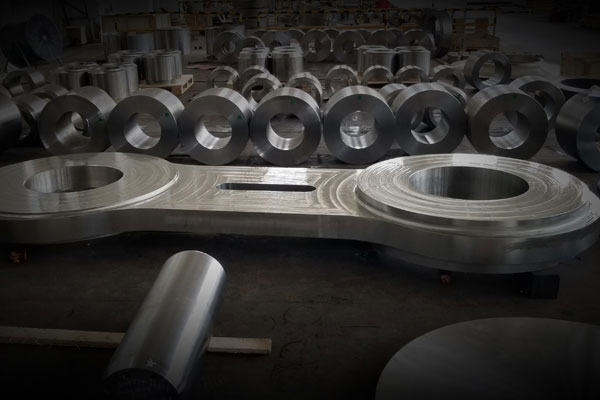

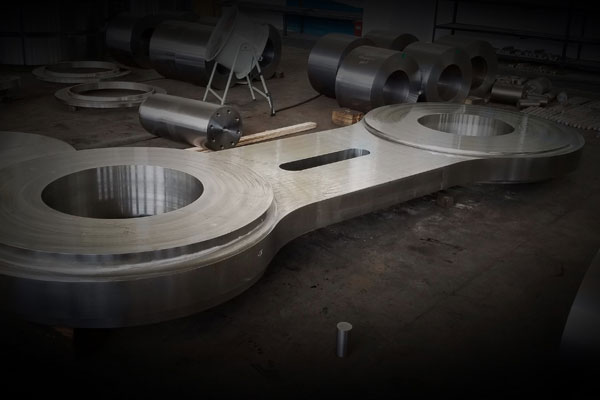

Dragline Stabilizer Link, also known as dog bone is a particularly important component used on the dragline excavator. One end of the stabilizer link is connected the walking shoe of the dragline excavator, the other end is connected to the walking cam.

It is a key component in the dragline excavator walking mechanism. WALKSON, a reliable heavy equipment part supplier, provides forged dragline stablizer link as a perfect replacement for welded links to increase the lifecycle of the component.

Why Choose WALKSON Dragline Stablizer Link

The typical material is 4140. The raw material will be heated, then be forged by 7000T press machine. After that proof machining will be conducted to remove the extra material. Then the forged part is quenched and tempered to the required property. At last, it will be fully machined as per the drawings.
