What are the specific tolerances for DIN 3962 Level 5 gears?

DIN 3962 Level 5 represents a high-precision classification. While exact tolerances depend on the gear's module and diameter, Level 5 typically ensures extremely tight control over total composite error, profile deviation ($f_f$), and helix deviation ($f_{eta}$). For instance, in medium-sized gears, the profile tolerance is often held within a few micrometers (μm), ensuring minimal transmission error and ultra-smooth operation in high-speed applications.

Why should I choose forging over machining from a billet for high-precision gears?

While machining from a billet is common, forging provides a superior internal structure. The forging process creates a continuous grain flow that follows the contour of the gear teeth. This metallurgical advantage significantly improves the gear's fatigue strength and impact resistance. For DIN Level 5 gears, forging ensures that the high-precision geometry is backed by a robust material foundation that can withstand higher loads without deformation.

What heat treatment processes does WALKSON offer for forged gears?

To complement our DIN Level 5 precision, we offer a full suite of heat treatment services tailored to the material and application:Carburizing (Case Hardening): Ideal for 20CrMnTiH and 18CrNiMo7-6 to achieve high surface hardness ($58$-$62$ HRC) while maintaining a tough core.Nitriding: Used for components requiring high wear resistance and minimal thermal distortion.Quenching & Tempering: To optimize the overall mechanical properties and toughness of the gear body.Induction Hardening: For localized hardening of gear teeth to enhance durability.

Can WALKSON provide DIN Level 5 accuracy for large-diameter gears?

Yes. Our facility is equipped with advanced CNC Gear Grinding machines capable of achieving DIN 3962 Class 5 accuracy for gears up to 2,500 mm in diameter. Every gear undergoes rigorous inspection using Coordinate Measuring Machines (CMM) and ultrasonic testing to ensure that the final product meets both the dimensional and metallurgical requirements of high-performance industrial standards.

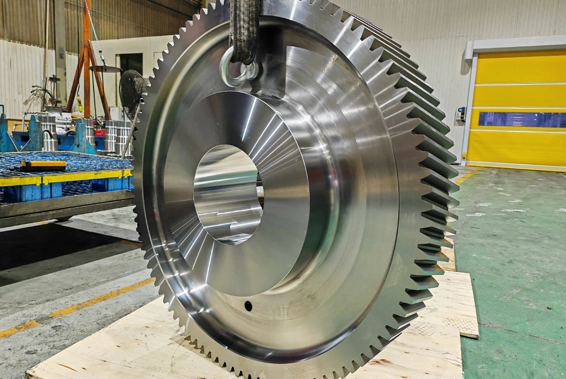

Forged Gears

Name: Forged Gears
Brand: WALKSON

DIN Level 5 forged gears are manufactured to conform to the DIN (Deutsches Institut für Normung) standards, specifically achieving a quality level of 5 on the DIN 3962 accuracy scale. These gears are forged rather than cast or machined from a billet, which enhances their strength, durability, and performance.

Key Aspects of DIN Level 5 Forged Gears:

1. DIN 3962 Standard:

The DIN 3962 standard defines the gear quality levels based on parameters such as accuracy of tooth profile, helix deviation, and runout. Level 5 is a high precision classification, indicating:

Very tight tolerances on tooth geometry.
Excellent smoothness in operation.
Minimal noise and vibration during use.

2. Forging Process:

Closed-Die Forging: Used to create complex shapes with excellent dimensional accuracy and strength.
Open-Die Forging: The forging process aligns the grain structure of the metal, resulting in improved fatigue resistance and impact strength compared to cast or machined gears.

3. High-Performance Materials & Metallurgical Benefits

We select premium alloy steels to ensure our DIN Level 5 forged gears meet the most demanding operational requirements. Each material is chosen for its specific mechanical properties:

20CrMnTiH: The Standard for Heavy-Duty Performance

As a premier carburizing steel, 20CrMnTiH offers an exceptional balance of core toughness and extreme surface hardness (typically 58-62 HRC after heat treatment). It is the ideal choice for heavy-duty automotive gears, transmission systems, and differentials where high impact resistance is required.

18CrNiMo7-6: Engineered for High-Torque Extremes

This high-alloy steel is known for its superior hardenability and fatigue strength. It is the preferred material for wind turbine gearboxes and high-load industrial drives. Its ability to withstand massive torque without tooth deformation makes it essential for long-term reliability in harsh environments.

42CrMo4 (AISI 4140): Versatility and Strength

A high-strength chromium-molybdenum steel that responds excellently to quenching and tempering. We recommend this for large-scale industrial machinery and structural gear components that require a high strength-to-weight ratio and consistent dimensional stability.

16MnCr5: Precision with Wear Resistance

Specifically used for gears requiring high surface wear resistance but moderate core stress. It is frequently applied in robotics, CNC precision tools, and light-to-medium duty gearboxes where DIN 5 accuracy must be maintained over a long service life.

4. Applications:

DIN Level 5 forged gears are used in high-performance and critical applications, including:

Automotive: Gearboxes and differentials in performance or heavy-duty vehicles.
Industrial Machinery: Robotics, CNC machines, and heavy-duty equipment.
Wind Energy: Gearboxes in wind turbines requiring durability and precision.

5. Advantages of DIN Level 5 Forged Gears:

High Strength: Withstand high loads and stresses in demanding environments.
Precision and Smooth Operation: Ensures efficient power transmission with minimal energy loss.
Reduced Noise and Vibration: Essential for applications requiring quiet and stable operation.
Extended Lifespan: Resistance to wear, fatigue, and environmental factors.

6. Typical Features:
Excellent dimensional consistency due to forging.
High resistance to deformation under load.
Tailored properties through additional machining and heat treatments.

DIN Level 5 forged gears are synonymous with quality and reliability, making them a preferred choice in industries where precision and durability are paramount.

Technical Specifications: DIN Level 5 Forged Gears

Feature	Technical Standards & Capabilities
Accuracy Grade	DIN 3962 Class 5 / AGMA 12-13 Equivalent
Forging Method	High-precision Closed-Die Forging & Heavy-duty Open-Die Forging
Grain Flow	Optimized Continuous Grain Flow for Enhanced Fatigue Resistance
Material Grades	Alloy Steels: 20CrMnTiH, 18CrNiMo7-6, 42CrMo4 (AISI 4140), 16MnCr5
Heat Treatment	Case Hardening (58-62 HRC), Nitriding, Quenching & Tempering
Surface Finish	Precision Ground (Ra ≤ 0.8 μm)
Module Range	M1.5 to M25 (Custom modules available upon request)
Max Diameter	Up to 2,500 mm (Depending on forging complexity)
Inspection Support	Ultrasonic (UT), Magnetic Particle (MT), CMM Dimensional Analysis

Summary of Capabilities: WALKSON specializes in the manufacturing of DIN Level 5 forged gears, combining advanced closed-die forging technology with precision CNC grinding. By utilizing high-grade alloys like 18CrNiMo7-6, we ensure that our gears deliver exceptional load-bearing capacity and minimal noise for critical applications in wind energy and heavy industrial machinery.

Case Study: Custom Forged Gears for Wind Energy

Challenge:

A leading wind turbine manufacturer required high-precision yaw and pitch gears capable of enduring extreme torque and corrosive offshore environments. The primary challenge was reducing transmission noise while extending the maintenance cycle beyond 20 years.

Solution:

WALSON provided custom DIN Level 5 forged gears manufactured from 18CrNiMo7-6 alloy steel. Utilizing our advanced closed-die forging process, we achieved a superior grain flow structure that significantly increased fatigue resistance. The gears underwent precise carburizing and quenching to ensure a surface hardness of 58-62 HRC, followed by meticulous CNC profile grinding to meet the DIN 3962 Class 5 accuracy standard.

Result:

The implemented solution resulted in a 15% reduction in vibration-induced noise and a significant increase in load-bearing capacity. Our client reported zero fatigue-related failures during the first 3 years of operation, optimizing their turbine uptime and reducing overall maintenance costs.

Have a similar project? Contact WALKSON's technical team for a customized gear solution today."

Frequently Asked Questions: DIN Level 5 Forged Gears

What are the specific tolerances for DIN 3962 Level 5 gears?: DIN 3962 Level 5 represents a high-precision classification. While exact tolerances depend on the gear's module and diameter, Level 5 typically ensures extremely tight control over total composite error, profile deviation ($f_f$), and helix deviation ($f_{\beta}$). For instance, in medium-sized gears, the profile tolerance is often held within a few micrometers (μm), ensuring minimal transmission error and ultra-smooth operation in high-speed applications.

Why should I choose forging over machining from a billet for high-precision gears?: While machining from a billet is common, forging provides a superior internal structure. The forging process creates a continuous grain flow that follows the contour of the gear teeth. This metallurgical advantage significantly improves the gear's fatigue strength and impact resistance. For DIN Level 5 gears, forging ensures that the high-precision geometry is backed by a robust material foundation that can withstand higher loads without deformation.

What heat treatment processes does WALKSON offer for forged gears?: To complement our DIN Level 5 precision, we offer a full suite of heat treatment services tailored to the material and application:Carburizing (Case Hardening): Ideal for 20CrMnTiH and 18CrNiMo7-6 to achieve high surface hardness ($58$-$62$ HRC) while maintaining a tough core.Nitriding: Used for components requiring high wear resistance and minimal thermal distortion.Quenching & Tempering: To optimize the overall mechanical properties and toughness of the gear body.Induction Hardening: For localized hardening of gear teeth to enhance durability.

Can WALKSON provide DIN Level 5 accuracy for large-diameter gears?: Yes. Our facility is equipped with advanced CNC Gear Grinding machines capable of achieving DIN 3962 Class 5 accuracy for gears up to 2,500 mm in diameter. Every gear undergoes rigorous inspection using Coordinate Measuring Machines (CMM) and ultrasonic testing to ensure that the final product meets both the dimensional and metallurgical requirements of high-performance industrial standards.
